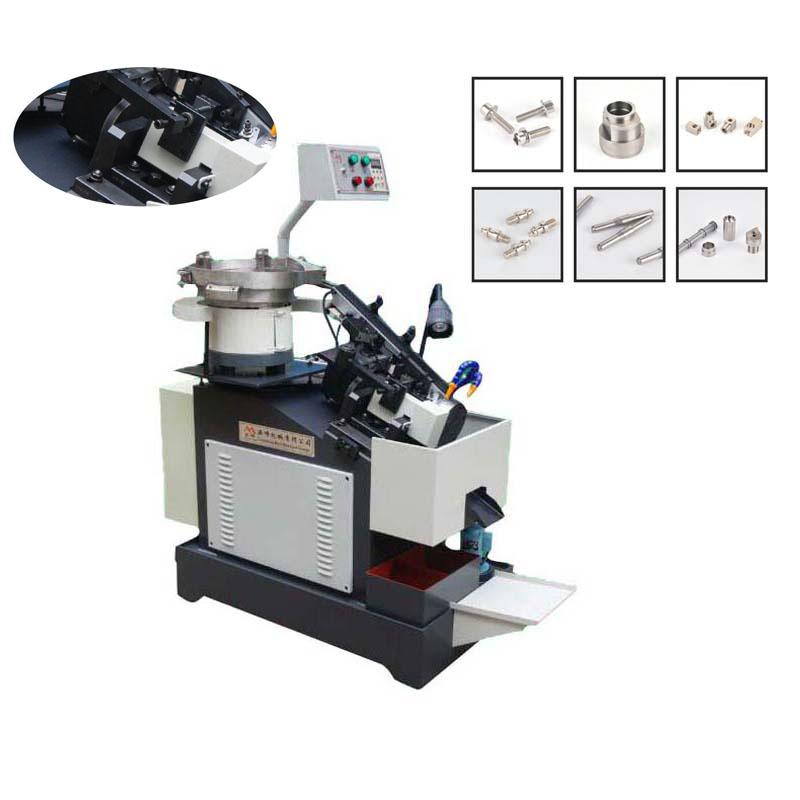

無毛刺螺釘銑槽車
Burr-free screw milling machine |
性能
Function |
雙刀對銑具備無毛刺
Burr-free double cutter milling |
|
\ |
免除后續去毛刺工序
Eliminates subsequent deburring requirement |
|
\ |
人性化設計操作簡便
User-friendly design, simple to operate |
|
\ |
可變頻調節自由進給
Adjustable variable frequency, free feed |
機型
Model |
ZX1.2-4 |
凈重
Net weight |
400KG |
主電機
Main motor |
1.5KW |
外觀尺寸
External dimensions |
1070mm X 610mmX1430mm |
每分鐘生產量
Production capacity per minute |
150只-350只
150 units-350units |
銑槽刀規格
Milling cutter specification |
外徑Φ35mm 內孔徑Φ13mm
厚度 0.3mm-2.0mm
External diameter Φ35mm， Inner bore Φ13mm
Thickness 0.3mm-2.0mm |
可加工產品范圍
Machinable product range |
外徑Φ1.0mm-Φ8.0mm
桿長度2mm-35mm
External diameter Φ1.0mm-Φ8.0mm
Shaft length2mm-35mm |
 |
