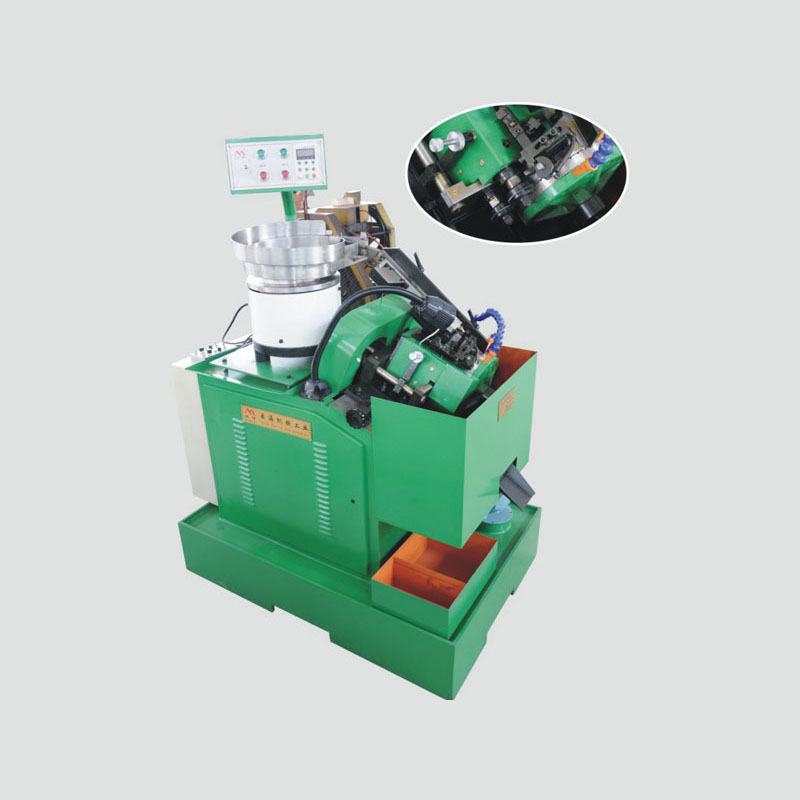

Burr-free hex head screw directional milling machine
- Category：High-speed cutting machine (longer)
- Release date：2019-05-27 15:05:55
Detailed Description
| 無毛刺外六角螺釘認向銑槽車 Burr-free hex head screw directional milling machine | |
|
性能 Function |
雙刀對銑具備無毛刺 Burr-free double cutter milling |
|
六角頭部能自動定位可對邊銑槽 Hex head can be automatically positioned, and supports edge grooving |
|
|
按需型體震動料抖送料技術 On-demand vibration-based material feed technology |
|
| \ |
可變頻調節自由進給 Adjustable variable frequency, free feed |
|
機型 Model |
ZX3-8 |
|
凈重 Net weight |
520KG |
|
主電機 Main motor |
0.75KW 1.10KW |
|
外觀尺寸 External dimensions |
1100mm X 750mm X1250mm |
|
每分鐘生產量 Production capacity per minute |
40只-100只 40 units-100units |
|
銑槽刀規格 Milling cutter specification |
外徑Φ45mm-Φ50mm 內孔徑Φ16mm 厚度 0.4mm-3.0mm External diameter Φ45mm-Φ50mm Inner bore Φ16mm Thickness 0.4mm-3.0mm |
|
可加工產品范圍 Machinable product range |
外徑Φ2.5mm-Φ10mm 六邊對邊5mm-16mm External diameter Φ2.5mm-Φ10mm Across flats 5mm-16mm |
