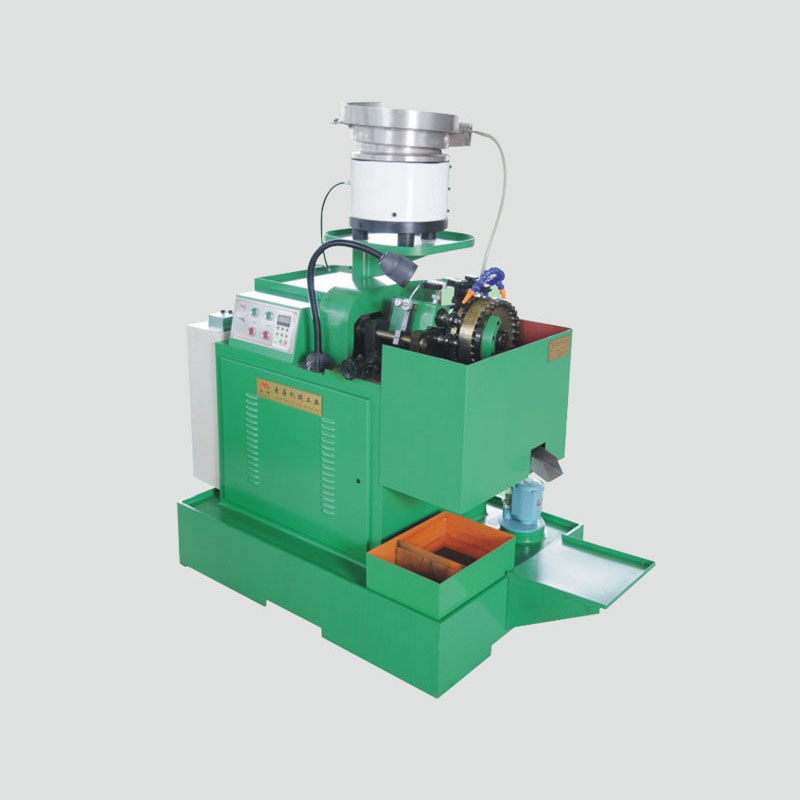

Burr-free headless set screw milling machine
- Category：Hexagon screw directional slot milling machine
- Release date：2018-06-23 15:06:48
Detailed Description
| Burr-free headless set screw milling machine | |
|
性能 Function |
雙刀對銑具備無毛刺 Burr-free double cutter milling |
| \ |
無頭螺釘兩端可按需定向 Headless screw, threaded on both ends as required |
| \ |
可變頻調節自由進給 Adjustable variable frequency, free feed |
| \ | \ |
|
機型 Model |
ZX3-8 |
|
凈重 Net weight |
595KG |
|
主電機 Main motor |
0.75KW 1.10KW |
|
外觀尺寸 External dimensions |
1100mm X 750mm X 1250mm |
|
每分鐘生產量 Production capacity per minute |
30只-250只 30 units-250 units |
|
銑槽刀規格 Milling cutter specifications |
外徑Φ45mm-Φ50mm內孔徑Φ16mm 厚度0.4mm-3.0mm External diameter Φ45mm-Φ50mm; Inner bore Φ16mm Thickness 0.4mm-3.0mm |
|
可加工產品范圍 Machinable product range |
外徑Φ2.5mm-Φ10mm 桿長度5mm-16mm External diameter Φ2.5mm-Φ10mm Shaft length 5mm-16mm |
 |
|
