Screw point cutting machine
- Category：New precision burrless small milling machine
- Release date：2018-06-23 15:06:13
Detailed Description
| 割尾機 Screw point cutting machine | |
|
性能 Function |
螺釘割尾 Screw point cutting |
| \ |
可變頻調節自由進給 Adjustable variable frequency, free feed |
|
機型 Model |
GW(3-10)-100 |
|
凈重 Net weight |
700KG |
|
外觀尺寸 External dimensions |
1500mm X 1400mm X 130mm |
|
銑刀電機 Milling motor |
6級電機 1.1KW Class 6 motor 1.1KW |
|
轉盤電機 Rotary table motor |
6級電機 1.1KW Class 6 motor 1.1KW |
|
水泵 Water pump |
80W |
|
每分鐘生產量 Production capacity per minute |
80只-350只 80 units-350 units |
|
銑刀規格 Milling cutter specification |
外徑Φ40mm-Φ80mm 內孔徑Φ16mm External diameter Φ40mm-Φ80mm Inner bore Φ16mm |
|
可加工產品范圍 Machinable product range |

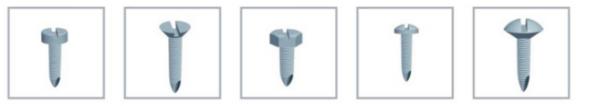

外徑Φ3mm-Φ10mm 桿長度15mm-100mm External diameter Φ3mm-Φ10mm Shaft length 15mm-100mm |
 |
|
